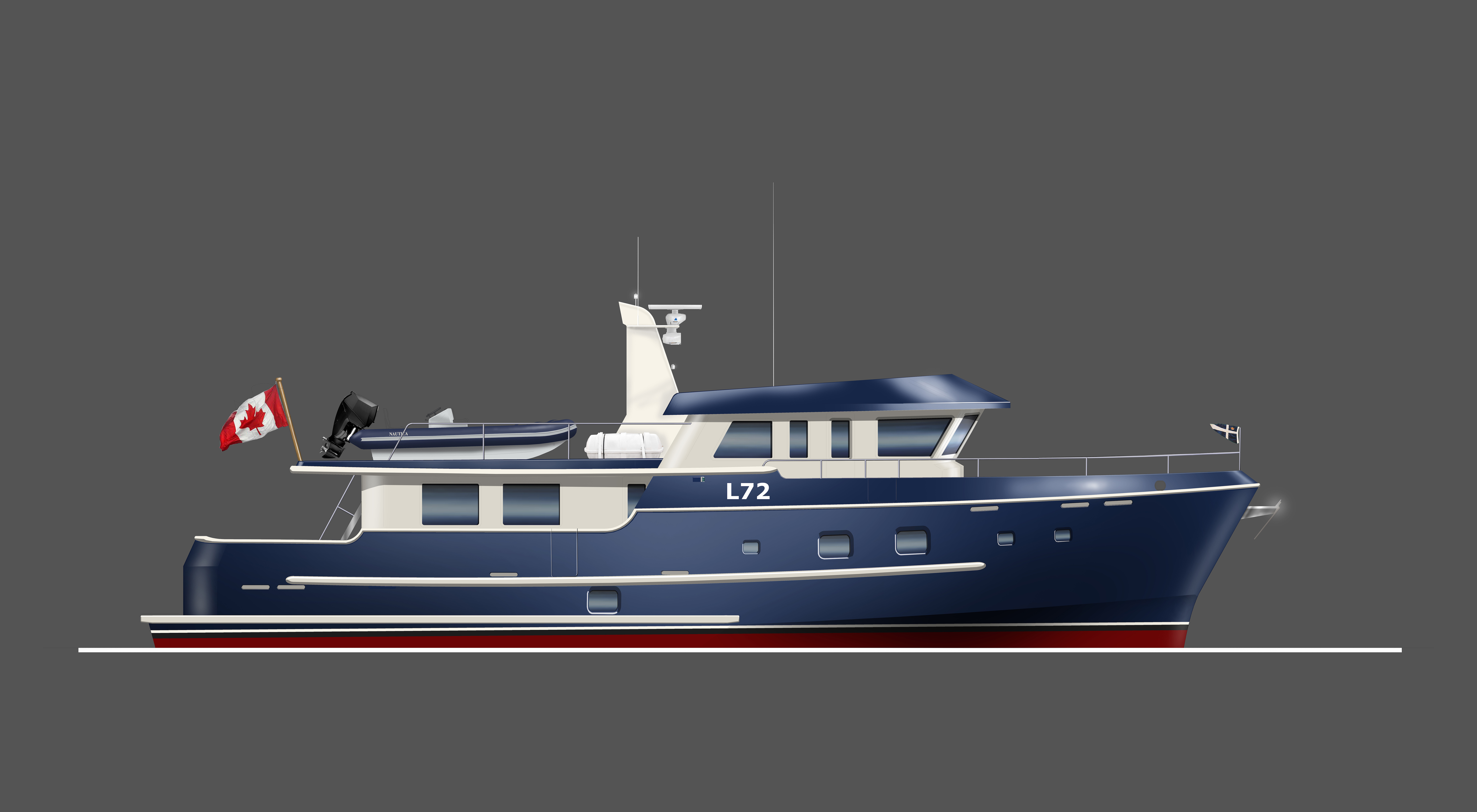

BRAY Latitude 72

Latitude 72 Trawler

PRINCIPAL DIMENSIONS (approx.)

     Length Overall
     Length Waterline
     Beam
     Draft
     Displacement (S.W.)

72'-0"
66’-3"
20'-6"
6'-8"
85,000 lbs.

CONSTRUCTION

     Construction

Composite

TANKAGE

     Fuel Capacity
     Fresh Water Capacity
     Grey Water Capacity
     Waste Water Capacity

3,550 US gal.
800 US gal.
150 US gal.
250 US gal.

MACHINERY

     Main Engines
     Genset (diesel)
     Water makers (reverse osmosis)

2 x 330 HP Intermittent rating
1 x 20 kW
1 x 600 US gal. per day

POWERING PREDICTIONS (estimated)

Fuel Consumption

Range

      8 knots: 125 HP
     10 knots: 245 HP
     11 knots: 460 HP
     12 knots: 660 HP

6.5 gal/hr
12.9 gal/hr
24.5 gal/hr
35.1 gal/hr

4345 knt. miles
2750 knt. miles
1600 knt. Miles
1200 knt. Miles

STABILITY (half loaded, intact, estimated)

Designed as a charter vessel or large family cruiser. The vessel has accommodation for 8 and 2 crew. There are 3 queen staterooms and 2 staterooms with single upper and lower berths on the lower decks for guests. Each queen cabin has its own bathroom and a shared bathroom between the singles. In the pilothouse is a queen berth in a private cabin for a husband and wife crew. Alternately single upper and lower berths could be fitted. Directly across from it is a w.c. The pilothouse has a large settee for visitors and two helm chairs. On the main deck is a spacious lounge with club chairs. The generous U-shaped galley has a pass through to a big dinette with room to sit all the guests. On the aft deck is a great area for al-fresco dining which can also convert to a huge sun lounger. The large swim platform is fitted with a mini beach club.
